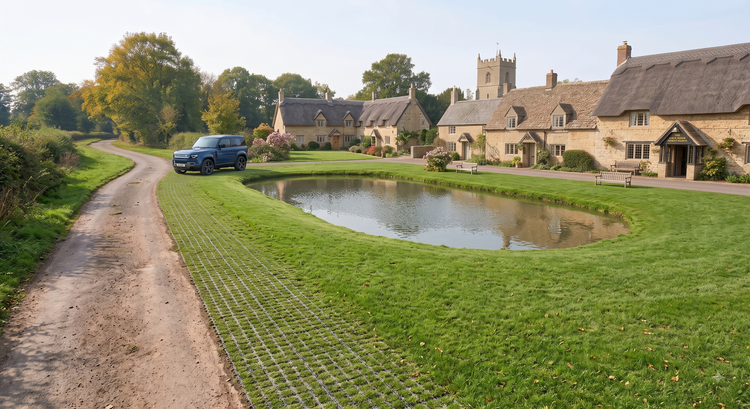

Armering af græsrabatter
Rabatter der overlever at blive kørt på
Køretøjer kører ud på en rabat, uanset hvad skiltet siger. IBRAN-gitre armerer underlaget under græsset, så rabatten tager hjulet og stadig ser ud som en rabat bagefter.
Hvorfor armering er afgørende her
En rabat svigter anderledes end enhver anden overflade. Intet kører langs den: køretøjer ankommer på tværs af den, i en vinkel, som regel mens de drejer, og som regel kun med den ene side af køretøjet. Lasten lander på blød jord, der aldrig er blevet opbygget, præcis dér, hvor en fast overflade stopper og en uforberedt begynder.
Det ene hjul gør mere skade end tusind passager midt på en vej. Det skærer tørven til siden, åbner et hjulspor, der fyldes med vand, og det næste køretøj finder endnu blødere jord. I løbet af en sæson er en pæn græskant blevet til en bugtende mudderstribe, og retableringsregningen ankommer hvert år.
Et cellegitter fjerner den bløde kant. Den inddæmmede rodzone bærer hjulet og fordeler lasten ned i et ordentligt bærelag, så rabatten tager overrulningen uden at deformere. Græsset vokser op over celletoppen, så rabatten fremstår som græs frem for som en udvidet vejbane.
Hvor dette fungerer godt
- Landeveje og enkeltsporsvejer
- Vejkryds og flaskehalse
- Mødestedspladser og nødstoppladser
- Rabatter og vendepladser i boligområder
- Randarealer ved erhvervs- og industriparker
- Overrulningsarealer for leverings- og servicekøretøjer
- Vejsidevejsparkering på rabatter
- Adgangsstriber til vejvedligeholdelse og forsyningsledninger
Overblik
| Bærelag | 100-200mm åbengraderet bærelagsgrus, afhængigt af de køretøjer, der overruller |
| Fyld | Sandbaseret vækstjord til græs, eller 6-20mm graderet stenblandning, hvor en fast overflade ønskes |
| Typisk belastning | Personbiler, varebiler, lastbiler der skærer hjørner, landbrugskøretøjer |
| Udseende | Fremstår som græsrabat. Ingen synlig nødspor eller udvidet vejbane |
| Permeabilitet | Fuldt permeabel. Holder overfladevand væk fra vejbanen frem for at tilføre det |
| Kanter | Kantafgrænsning er nødvendig, hvor gitteret møder vejbanen |
| Designlevetid | 25 år, forudsat dokumenteret udførelse |
| Materiale | 100% genanvendt polypropylen, fremstillet i EU |
Græs eller grus?
Begge fungerer i det samme gitter, og valget handler som regel om, hvad rabatten skal bruges til.
Græs bevarer det landlige eller bymæssige præg. Ingen ser en belægning – de ser en rabat, og vejen eller boligkvarteret ser uændret ud. Det egner sig til lejlighedsvis overrulning: det hjørne en lastbil skærer en gang om ugen, den vej, hvor biler trækker ind for at lade hinanden passere.
En graderet stenfyld giver en fastere og mere forudsigelig overflade til rabatter, der reelt er i konstant brug: en aflæsningszone, en strækning med vejsideparkering, en vedligeholdelsesstribe. Det fremstår som en bevidst overflade frem for som græs – og det er nogle gange præcis det, man ønsker, fordi en synligt fast kant fortæller bilister, at det er sikkert at bruge den.
Det fungerer godt at kombinere de to langs en strækning. Sten der, hvor hjulene faktisk lander, græs på begge sider – og det hele ser stadig intentionelt ud.
Hvilken gitterdybde?
Dybdetallet på et gitter er en beslutning om, hvor dybt det inddæmmede lag er. På en rabat er belastningerne køretøjsmæssige men periodiske, og underlaget er som regel dårligt.
- IBRAN®-X50 hvor lastbiler, landbrugskøretøjer eller leveringskøretøjer overruller regelmæssigt, eller hvor en specifikation styrer opbygningen.
- IBRAN®-X40 til generel rabatbeskyttelse på boligveje og landeveje: personbiler, varebiler og lejlighedsvise større køretøjer.
- IBRAN®-X30 hvor udgravningsdybden er begrænset af ledninger, trærødder eller behovet for at tilpasse sig det eksisterende vejniveau nøje.
Rabatter er fulde af nedgravede ledninger, så undersøg hvad der ligger nedenunder, inden du forpligter dig til en dybde. Den begrænsning afgør svaret oftere end trafikken gør.
Valg af fyldmateriale
Til græs bruges en sandbaseret vækstjord fyldt i niveau med celletoppen samt en slidstærk brugsplænegræsblanding frem for en fin prydgræsblanding. Rabatter slås med traktormonterede slagleklipper og køres over af forbipasserende, så specificer for holdbarhed.
Til sten bruges en 6-20mm graderet stenblandning, kantet og ren. En blandning pakker tættere end én enkelt størrelse, fordi den mindre sten udfylder mellemrummene mellem den større – og en fuldt understøttet celle fører lasten gennem stenen frem for gennem plasten.
Uanset hvad du vælger, fyld i niveau frem for over kanten. På en rabat, der grænser op til en vejbane, vil løst materiale over cellerne ende på vejen.
How it goes in
- Check for buried services before anything else. Verges carry water, gas, electricity, telecoms and drainage, often at shallow depth, and they are rarely where the drawings say. Scan and trial-hole first.
- Set out the width. Reinforce the full area that vehicles actually reach, not the neat rectangle you would like them to use. Existing wear patterns tell you exactly where that is.
- Excavate to the depth of your sub-base plus the grid depth. On a verge this is often the point where you discover why it failed: soft, waterlogged ground with no build-up beneath it at all.
- Lay a woven geotextile across the formation, lapping joins by at least 300mm, so the sub-base cannot punch down into soft subsoil.
- Lay and compact an open-graded sub-base in 50mm layers, to a depth that matches the vehicles overrunning.
- Blind and screed level, matching the finished level to the adjoining carriageway or footway.
- Push-fit the grids together, cutting to line along the carriageway edge and around any street furniture, gullies or covers.
- Restrain the edges, particularly where the grid meets the road. This is the transition that everything else depends on.
- Fill the cells level with the cell tops, brushing in so no cell is left hollow. Seed or turf grass sections and keep traffic off while they establish.
Full step-by-step detail is in our installation guides.
The transition at the carriageway edge
This is where verge installations succeed or fail, and it deserves designing rather than improvising.
A vehicle mounting a verge crosses from a firm surface to a reinforced one, and any step, lip or gap at that line concentrates the load exactly where the outermost grid has least support. Over time it lifts the edge, opens a gap, and lets water get underneath.
Finish flush with the carriageway, restrain the edge properly, and where there is a kerb, bring the grid up tight against it rather than leaving a strip of unreinforced ground between the two. That strip is where the rut will form.
Verges with trees
Mature street and roadside trees are a common reason verges cannot simply be paved.
A reinforced grass or gravel verge is often acceptable within a root protection area where a bound surface is not, because the excavation is shallower and the finished surface stays fully permeable, so rain still reaches the roots rather than running off into a gully.
Where roots are close to the surface, use the shallowest grid the traffic allows and discuss the build-up with the tree officer before you excavate. It is a considerably easier conversation than the one that follows root damage.
Keeping the verge doing its other jobs
Verges are not only there to be driven over. They carry services, take highway drainage, hold visibility splays open and, increasingly, are managed for biodiversity.
Reinforcement is compatible with all of it. The surface stays permeable, so it does not push water onto the carriageway. Grids can be lifted locally for service access and reinstated. And a grass fill keeps the verge as vegetation rather than converting it to hard standing, which matters where a highway authority or a planning condition is counting green space.
Get it right first time
The one thing worth knowing: reinforce where the wheels go, not where you wish they went.
The most common failure is reinforcing a tidy strip and watching vehicles cut the corner just beyond it. Verge damage is a geometry problem: drivers take the line their vehicle needs, and a lorry turning into a narrow entrance will always swing wide.
Read the existing damage before you set out. The bare, rutted ground is a precise record of where every vehicle has actually been, and it is better information than any drawing. Reinforce that area, plus a margin, and the problem stops. Reinforce a neater shape and you will simply move the rut a metre sideways.
Ask our engineer
Questions about depths, working around services or trees, or which system fits your verge? Ask below, or get in touch directly.
Design your surface
Set out the area, choose a grid and an infill, and see the finished surface. The schedule and the specification follow.
Permeable surface specification
Schedule
Assumptions
Specification
Common Questions
Why do grass verges get damaged so quickly?
A verge is loaded differently from any other surface. Vehicles arrive across it at an angle, usually while turning and usually with only one side of the vehicle, and that wheel lands on soft ground that was never built up.
It shears the turf sideways, opens a rut that fills with water, and the next vehicle finds softer ground still. One overrunning wheel does more damage than a thousand passes down the middle of a road.
Should a reinforced verge be grass or gravel?
Both work in the same grid. Grass keeps the rural or residential character intact and suits occasional overrun, such as a corner clipped once a week. A graded stone fill gives a firmer, more predictable surface for verges in constant use, such as a delivery bay or roadside parking, and the visibly firm edge tells drivers it is safe to use.
Mixing the two along a length works well: stone where the wheels land, grass either side.
How wide should a reinforced verge be?
Reinforce the full area vehicles actually reach, not the neat rectangle you would like them to use.
Existing wear patterns are a precise record of where every vehicle has been and are better information than any drawing. Reinforce that area plus a margin, or you will simply move the rut a metre sideways.
What about buried services under the verge?
Check before you set out. Verges carry water, gas, electricity, telecoms and drainage, often at shallow depth and rarely where the drawings say, so scan and trial-hole first.
Service depth constrains the grid depth more often than the traffic does. Grids can be lifted locally for future service access and reinstated afterwards.
Can you reinforce a verge with trees in it?
Often yes, and it is frequently acceptable within a root protection area where a bound surface is not. The excavation is shallower and the finished surface stays fully permeable, so rain still reaches the roots rather than running off into a gully.
Where roots are close to the surface, use the shallowest grid the traffic allows and discuss the build-up with the tree officer before excavating.
Which grid depth is right for verge protection?
The 40mm grid suits general verge protection on residential streets and rural lanes carrying cars, vans and occasional larger vehicles. Step up to 50mm where HGVs, agricultural traffic or delivery vehicles overrun regularly.
Use 30mm where excavation depth is limited by services, tree roots or the need to match the carriageway level closely.
How do you finish the edge where the verge meets the road?
Finish flush with the carriageway and restrain the edge properly. Any step, lip or gap at that line concentrates load exactly where the outermost grid has least support, which lifts the edge and lets water underneath.
Where there is a kerb, bring the grid tight against it rather than leaving a strip of unreinforced ground between the two, because that strip is where the rut will form.
Will a reinforced verge still count as green space?
A grass-filled grid keeps the verge as vegetation rather than converting it to hard standing, which matters where a highway authority or planning condition is counting green space.
The surface also stays fully permeable, so it does not push additional run-off onto the carriageway.
Can vehicles park on a reinforced verge?
Yes, where parking is permitted. Reinforced verge parking is a common application on residential streets and business parks, and it stops the surface breaking up under repeated use.
Where parking is constant rather than occasional, a graded stone fill usually performs and looks better than grass, because grass under a parked car gets no light.
What maintenance does a reinforced verge need?
Grass sections are mown and maintained as any amenity grass, and mowers pass straight over because the cell tops sit below the growing crown. Stone sections need levels checking after the first winter and any settled cells brushing back up.
There is no annual reinstatement, which is the normal maintenance cycle for an unreinforced verge.
