Stier til golfbiler
Ruter der bærer trafikken uden at skæmme landskabet
Buggystier der ikke ligner veje. IBRAN-gitter armerer underlaget under græs eller grus, så fritidsruter tåler konstant let trafik, mens banen, parken eller området stadig ser ud, som det skal.
Hvorfor armering er afgørende her
Fritidsruter har en usædvanlig belastningsprofil: køretøjerne er lette, men de kører konstant, præcis langs den samme linje, og de drejer skarpt i enderne. En golfbuggy vejer en brøkdel af en bil, men hundrede af dem om dagen langs den samme rute fra tee til fairway vil slide et sår i græstæppet, som ingen mængde eftersåning kan rette op på.
Drejningsmoment spiller en rolle. Buggyer, baneplejevogne og arbejdskøretøjer er små og lette, men de sætter hjulene hårdt i gang fra stillestående, og det er dette vrid mod overfladen – ikke vægten – der river græstæppet i stykker. Tilføj dug, frost eller en våd uge, og sliddet bliver permanent inden for en enkelt sæson.
Et cellulært gitter stopper det. Det inddæmmede rodzone-materiale eller stenmaterialet bærer trafikken og kan ikke forskydes sideværts, så ruten holder sin form på ubestemt tid. Græsset vokser op over cellernes overkant, og stien forbliver usynlig – eller et gradueret stenfyld giver en markeret rute, hvor det ønskes.
Hvor dette fungerer godt
- Golfbuggy-stier og baneovergange
- Ruter for banepleje- og vedligeholdelseskøretøjer
- Feriecentre og campingpladser – standpladser og interne veje
- Befæstede standpladser for campingvogne og tourer-pladser
- Naturparker og herregårdsruter til gående
- Alternativer til boardwalks i naturreservater
- Flerbrugsstier og cykelruter
- Adgangs- og maskinruter ved sportsanlæg
Overblik
| Bærelag | 75-150mm åbengraderet bærelag, afhængigt af om vedligeholdelseskøretøjer bruger ruten |
| Fyldmateriale | Sandbaseret rodzonemix til græs, eller et 6-14mm gradueret stenmix til en markeret sti |
| Typisk belastning | Buggyer, arbejdskøretøjer, plæneklippere, traktorer, cykler og fodgængere |
| Udseende | Græsfyld forsvinder helt. Stenfyld fremstår som en sti, ikke en vej |
| Tilgængelighed | Et tæt pakket gradueret fyld giver en fast overflade for kørestole og buggyer |
| Permeabilitet | Fuldt permeabel. Ingen afstrømning til fairways, greens eller beplantning |
| Designlevetid | 25 år, forudsat dokumenteret udførelse |
| Materiale | 100% genanvendt polypropylen, bæredygtigt fremstillet i EU |
Hvor sliddet faktisk opstår
Det er sjældent nødvendigt at armere en hel rute. Slid på fritidsruter er koncentreret – og det er koncentreret på forudsigelige steder.
På en golfbane er det afkørslen ved tee'en, drejningen ved greenen, overgangspunktet mellem huller og det smalle sted, hvor ruten passerer mellem en bunker og en sti. På et feriecenter er det indkørslen til hver standplads og vendepladsen for enden af vejen. I en naturpark er det porten, krydset og de tyve meter på hver side af en bænk eller et udsigtspunkt.
Det er de steder, hvor køretøjer stopper, starter og drejer, og hvor overfladen skal gøre noget andet end blot at blive kørt lige over. Armér disse punkter, og du løser det meste af problemet for en brøkdel af prisen på at befæste hele ruten.
Resten af ruten kan ofte forblive, som den er, eller klares med et lettere opbygningslag. Det er værd at gå ruten og kortlægge de bare pletter, inden du specificerer noget: de viser præcis, hvor pengene skal bruges.
Hvilken gitterdybde?
Tallet på et gitter er en beslutning om, hvor dybt det inddæmmede lag er. På fritidsruter er køretøjerne lette, så spørgsmålet handler typisk om frekvens og om, hvad der ellers bruger ruten.
- IBRAN®-X30 til buggy-, fodgænger- og cykelruter med et lavt opbygningslag, og hvor udgravningsdybden skal holdes minimal nær rødder, greens eller ledninger.
- IBRAN®-X40 som standardvalg, hvor vedligeholdelseskøretøjer, plæneklippere og arbejdsvogne deler ruten.
- IBRAN®-X50 hvor traktorer, trailere eller leveringskøretøjer bruger samme rute, eller hvor et græsdække skal have mulighed for at regenerere ordentligt mellem belastningerne.
Vær ærlig om det tungeste køretøj, der bruger ruten. På en golfbane er det typisk ikke en buggy – det er greenstraktoren, topdresseren eller sandleverancen.
Valg af fyldmateriale
Til en usynlig rute bruges et sandbaseret rodzonemix fyldt i niveau med cellernes overkant, kombineret med en slidstærk brugsplæneblanding. Græsset vokser hen over gitteret, og ruten forsvinder ind i det omgivende græstæppe – hvilket på en golfbane eller et designet anlæg typisk er hele pointen.
Til en markeret sti bruges et 6-14mm gradueret stenmix, kantet og rent. En blanding pakker tættere end én enkelt størrelse, fordi det mindre sten fylder hullerne mellem det større, og den finere topstørrelse giver en komfortabel overflade for fodgængere og smalle hjul.
Lokalt eller dekorativt tilslag fungerer godt her, så en sti kan tilpasses omgivelserne frem for at blive påtvunget dem. Uanset hvilket fyld du vælger: fyld i niveau med cellernes overkant frem for over dem – sten der sidder over cellerne vil vandre ud på det græs, du helst vil holde rent.
How it goes in
Walk the route and map the existing wear. Bare patches, ruts and desire lines tell you where vehicles actually go and where reinforcement will earn its keep.
Set out the width generously at turns and pull-offs. A route that is wide enough on the straight is often too narrow where a buggy swings.
Strip turf and topsoil to a firm formation, removing soft spots rather than building over them.
Lay a woven geotextile across the formation, lapping joins by at least 300mm.
Lay and compact an open-graded sub-base in layers, to a depth set by the heaviest vehicle using the route rather than the lightest.
Blind with a thin levelling layer and screed it flat. On a narrow route every dip reads, and on a golf course it will be noticed.
Push-fit the grids together along the route, cutting to line at the edges and around trees, sprinklers and drainage.
Restrain both edges along the full length. On a route two metres wide, the edges are most of the surface.
Fill the cells level with the cell tops and brush in. Seed or turf grass sections and keep traffic off while they establish.
Full step-by-step detail is in our installation guides.
Turns, stops and pull-offs
These take several times the wear of the running length, and they are worth treating as separate details rather than as more of the same path.
A buggy turning at a green is applying torque with the vehicle almost stationary, which grinds rather than rolls. The same happens at every pitch entrance on a holiday park and every junction on a park route. Widen the reinforced area at these points, take it further out than the geometry strictly requires, and consider a stone fill even where the rest of the route is grass.
Where a route ends, extend the reinforcement past the end point. Vehicles turn round somewhere, and that somewhere becomes the new bare patch if you stop the surface at the last tidy line.

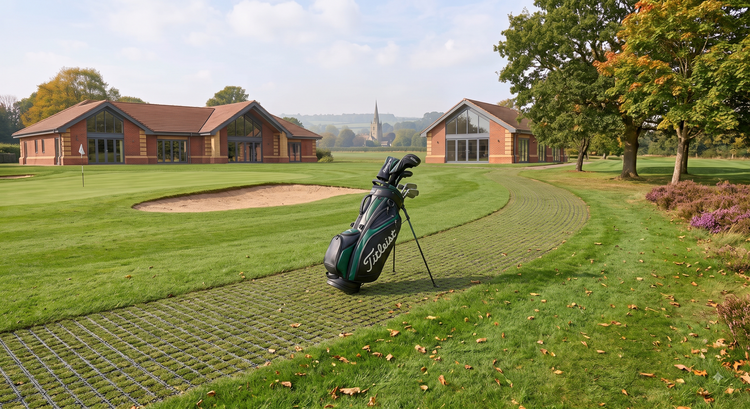

Keeping a golf course looking like a golf course
The reason most courses resist buggy paths is aesthetic, and it is a legitimate objection: a concrete or tarmac ribbon changes the character of a hole permanently and cannot be undone.
A grass-filled grid does not. The route carries the traffic invisibly, the turf across it is mown with everything else, and from the tee there is nothing to see. Where a defined path is wanted, a stone fill in a local aggregate reads as a path through the landscape rather than as infrastructure laid across it.
It also keeps the surface permeable, so water does not run off a hard ribbon onto the fairway or into a bunker, which is the second complaint courses tend to have about bound paths.
Frost, dew and wet weather
Many clubs and parks restrict buggy use in poor conditions, and the restriction exists because unreinforced turf is at its most vulnerable when soft or frozen.
Reinforcement changes the calculation. A confined rootzone cannot shear into ruts, and the fully permeable build-up drains rather than holding water, so a reinforced route stays usable when the surrounding ground does not. On a golf course that can mean buggy income on days that would otherwise be cart-path-only or closed entirely.
It does not override agronomy: frozen turf is still fragile, and local policy still applies. But the route itself is no longer the limiting factor.
Get it right first time
The one thing worth knowing: specify for the maintenance vehicle, not the buggy.
Almost every leisure route is designed around the vehicle it is named after and then used by something considerably heavier. Buggy paths carry the greens tractor. Campsite roads carry the service lorry and the refuse truck. Park routes carry the ranger's pickup and the contractor's trailer.
Work out the heaviest vehicle that will realistically use the route and build the sub-base and grid depth for that. The extra depth is a modest cost across a narrow route, and it is the difference between a path that lasts twenty years and one that fails the first time a delivery comes down it.
Ask our engineer
Questions about depths, where to reinforce, or which system fits your route? Ask below, or get in touch directly.
Design your surface
Set out the area, choose a grid and an infill, and see the finished surface. The schedule and the specification follow.
Permeable surface specification
Schedule
Assumptions
Specification
Common Questions
Why do golf buggies wear out turf so quickly?
It is torque rather than weight. Buggies and utility vehicles are light but drive their wheels hard from a standstill, and that twist against the surface tears turf apart.
Combine it with a hundred vehicles a day following exactly the same line and turning tightly at each end, and a scar forms that overseeding will not fix.
Do I need to reinforce the whole buggy route?
Rarely. Wear on leisure routes is concentrated in predictable places: the pull-off by the tee, the turn at the green, crossings between holes, pitch entrances on a holiday park, and junctions on a park route.
Reinforce where vehicles stop, start and turn and you fix most of the problem for a fraction of the cost. Walk the site and map the bare patches before specifying anything.
Will a buggy path spoil the look of the course?
A grass-filled grid is invisible. The route carries the traffic below the surface, the turf across it is mown with everything else, and from the tee there is nothing to see.
Where a defined path is wanted, a stone fill in a local aggregate reads as a path through the landscape rather than as infrastructure laid across it, and stays permeable so water does not run off onto fairways or into bunkers.
Which grid depth should a buggy path use?
The 30mm grid suits buggy, pedestrian and cycle routes where the build-up has to stay shallow. The 40mm is the general choice where maintenance vehicles, mowers and utility carts share the route. Step up to 50mm where tractors, trailers or delivery vehicles use the same route.
Specify for the heaviest vehicle, which on a golf course is usually the greens tractor rather than a buggy.
Can reinforced routes be used in wet or frosty conditions?
A confined rootzone cannot shear into ruts and the build-up is fully permeable, so a reinforced route stays usable when the surrounding ground does not. For a club that can mean buggy income on days that would otherwise be cart-path-only.
It does not override agronomy: frozen turf is still fragile and local policy still applies, but the route itself is no longer the limiting factor.
What should leisure route grids be filled with?
For an invisible route, a sand-dominant rootzone filled level with the cell tops, with a hard-wearing amenity seed mix.
For a defined path, a 6-14mm graded blend, angular and clean: a blend packs tighter than a single size and the finer top size is comfortable underfoot and under a narrow wheel. Local or decorative aggregate lets a path match its setting.
Are reinforced paths suitable for wheelchairs and mobility scooters?
A densely packed graded stone fill gives a firm, level surface suitable for wheelchairs, mobility scooters and pushchairs. Density is what matters rather than particle size: a graded blend packs solid, where single-size stone leaves voids that small wheels drop into.
This makes reinforced routes a good fit for country parks and nature reserves with accessibility commitments.
How wide should a buggy path be?
Wider at turns and pull-offs than on the straight, because a route that is adequate on the straight is often too narrow where a vehicle swings.
Where a route ends, extend the reinforcement past the end point: vehicles turn round somewhere, and that somewhere becomes the new bare patch if the surface stops at the last tidy line.
Can grids be used for caravan and camping pitches?
Yes, and pitch entrances are one of the highest-value places to use them, because that is where every vehicle turns onto soft ground.
A grass fill keeps the site looking green, while a graded stone fill gives a firm, free-draining hardstanding for touring pitches and awnings.
What maintenance do reinforced leisure routes need?
Grass sections are mown, fed and overseeded as amenity grass, and mowers pass straight over because the cell tops sit below the growing crown. Stone sections need levels checking after the first winter and any settled cells brushing back up.
The grid itself needs nothing and carries a 25 year warranty subject to documented installation.
