Grusarmering til indkørsel – underlag, sten og montering
Derfor er armering afgørende

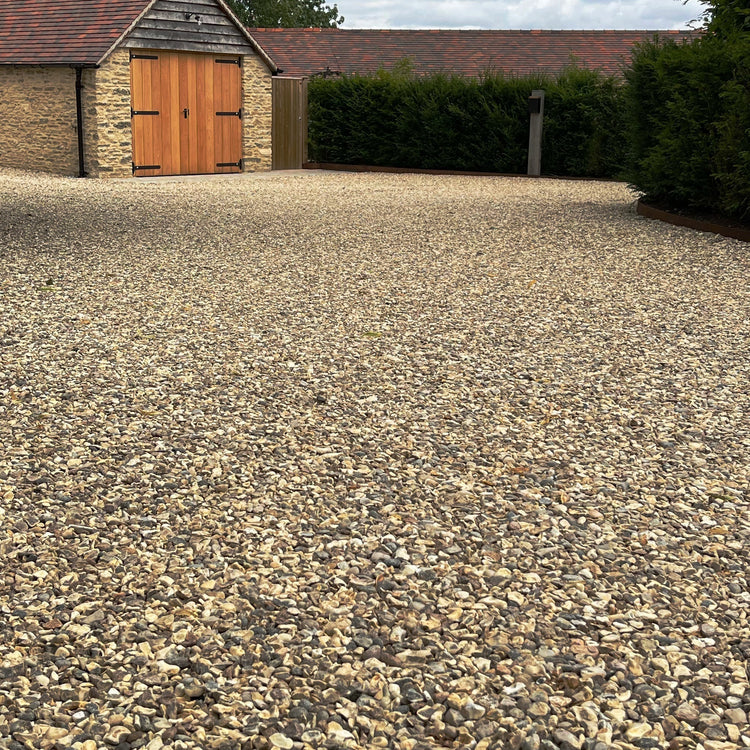

En grusindkørsel der holder formen. IBRAN-gitter låser stenen fast i celler, så overfladen forbliver plan, afleder vand frit og kræver næsten ingen vedligeholdelse, når den først er lagt.
Grus er et reelt godt belægningsvalg til indkørslen. Det er permeabelt, det passer til næsten enhver ejendom, og det koster en brøkdel af betonbelægning. Løst grus fejler, fordi stenen kan vandre. Et gitter erstatter hverken stenen eller bærelaget – det indeslutter det færdige gruslag, så stenen kan fordele lasten uden at forskyde sig.
Holdt inde i et cellegitter sidder hver sten i sin egen celle, og lasten fordeles over hele overfladen i stedet for at koncentrere sig under dækket. Stenen udfører stadig det strukturelle arbejde: gitteret forhindrer blot, at den bevæger sig. Det er forskellen på en indkørsel, du river op hver forår, og en du parkerer på og glemmer.
Typiske anvendelser
- Private indkørsler
- Fælles private adgangsveje
- Vendepladser og parkeringsbåse
- Skrånende adgangsveje
- Tilgængelighedsruter for kørestolsbrugere
- Udlægning over eksisterende beton eller asfalt
Overblik
| Bærelag | 50-80mm stabilt grus, Type 1-kvalitet (100-150mm ved regelmæssig varevognstrafik) |
| Fyld | 6-20mm gradueret blanding, kantet og rent, fyldt i niveau plus 5-10mm afretning |
| Typisk belastning | Personbiler, lette varevogne og lejlighedsvise leveringskøretøjer |
| Permeabilitet | Fuldt permeabel. Behandles normalt som en komponent i en lokal afledning af regnvand (LAR)-strategi |
| Myndighedskrav | Permeable belægninger til indkørsler kræver normalt ikke byggetilladelse – kontrollér de lokale planforhold |
| Designlevetid | 25 år, forudsat dokumenteret udførelse |
| Materiale | 100% genanvendt polypropylen, bæredygtigt fremstillet i EU |
Sådan udføres arbejdet
- Afsæt arealet og udgrav til dybden af bærelag plus gitterdybde plus afretningslag.
- Udlæg et vævet geotekstil over bunden med mindst 300mm overlap ved samlinger. Det forhindrer bærelaget og undergrundens jord i at blande sig – og bevarer dermed den dybde, du netop har betalt for.
- Udlæg og komprimér bærelaget: 50-80mm stabilt grus, Type 1-kvalitet, eller 100-150mm ved regelmæssig varevognstrafik. Komprimér i lag frem for på én gang, så pladevibratorens effekt når hele vejen igennem.
- Afret bærelaget med et tyndt lag groft sand og skrab det plant. Det er dette trin, der giver dig en plan færdig overflade.
- Sammenføj gitterne med stikforbindelser over hele arealet, og arbejd fra én kant. Tilskær omkring forhindringer med en stiksav eller en fintandet sav.
- Fyld cellerne med en 6-20mm gradueret blanding, i niveau plus 5-10mm afretning. Arbejd fyldet ind med en stiv børste, så ingen celle efterlades hul.
- Kontrollér det færdige niveau. Intet bør stå over cellernes overkant, og ingen celle bør efterlades underfyldt.
Det meste af dette er rutinepræget jordarbejde. Gitterne samles med stikforbindelser og kræver ingen beslag, lim eller specialværktøj. Fuld trin-for-trin vejledning findes i vores installationsvejledning til grusarmering.
Valg af sten
Brug en gradueret blanding af 6-20mm, kantet og ren. Meget vejledning anbefaler én enkelt størrelse, men en enkelt størrelse efterlader hulrum: ensartet sten brygger mod sig selv og pakker aldrig helt tæt. En blanding udfylder disse mellemrum, fordi den mindre sten kiler sig ind mellem den større.
Det er værd at gøre rigtigt. En fuldt fyldt celle fører lasten gennem stenen og ned i undergrunden. En halvfyldt celle fører den gennem plasten i stedet. Stenen skal udføre arbejdet, og en blanding er det, der gør det muligt.
Bed din leverandør om vasket gradueret tilslag, kantet frem for rundet. Rundet ærtesingel ruller under foden uanset hvor godt gradueret det er.
Which grid depth?
The number on a grid is a decision about how deep the confined stone layer is, and that sets your excavation, your stone volume and your finished level.
IBRAN®-X30 is the right choice for most driveways. The shallowest build-up, the least excavation and the least stone, and the grid to use if you are going over existing concrete or working to a tight threshold or DPC level.
IBRAN®-X40 where the same surface also has to carry grass, or where you want additional depth without a specification calling for it.
IBRAN®-X50 where a drawing or engineer has specified a deeper confined layer, or the drive takes sustained commercial traffic.
If you are between two options, take the heavier duty one. The cost difference across a typical project is small next to the cost of lifting and relaying a surface that was under-specified.
Get it right first time
The one thing worth knowing: keep the fill level.
Anything more than about 10mm proud of the cell walls is unconfined stone, and unconfined stone behaves like loose gravel because that is exactly what it is. Fill the cells level, add a thin blinding over the top, and the surface will hold. If you ever see ruts starting in the top layer, the fill is simply too deep, and brushing it back level fixes it.
Design your surface
Set out the area, choose a grid and an infill, and see the finished surface. The schedule and the specification follow.
Permeable surface specification
Schedule
Assumptions
Specification
Common Questions
How much gravel do I need on top of the grids?
Fill the cells level and add a 5mm to 10mm blinding layer over the top. Any deeper and the stone above the grid is unconfined, which means it can still migrate.
What size gravel works best in a gravel grid?
A graded blend between 6mm and 20mm, angular and washed. Angular pieces interlock where rounded pea shingle rolls, and a blend packs tighter than a single size because the smaller stone fills the gaps between the larger.
Do I need a sub-base under a gravel driveway?
Yes but there is no single sub-base depth that suits every driveway. Ground conditions and expected loading determine the required construction depth. As a starting point, domestic driveways commonly use 50mm to 80mm of compacted MOT Type 3. For regular van or delivery traffic, go to 100mm to 150mm.
Compact it in layers rather than all at once, so the plate can work through the full depth.
Can you lay gravel grids on a slope?
Yes. Grids are particularly effective on slopes, because the cell walls stop stone washing downhill in heavy rain. A sloped gravel driveway without confinement will always migrate to the bottom of the run.
Do I need planning permission for a gravel driveway?
In England, a permeable driveway will not normally require planning permission solely because of its surface water drainage, although restrictions can apply in listed buildings, conservation areas and other circumstances. Impermeable surfaces such as concrete and tarmac usually do. Check with your local authority if your property is listed or in a conservation area. Always check with your local planning authority if you're unsure.
Check with your local authority if your property is listed or in a conservation area.
Do I need to remove my existing driveway first?
If it is loose gravel, usually not. Rake it out, compact it and check your levels.
If it is broken tarmac or concrete, it has to come up or you will have no drainage path beneath the new surface.
Do gravel grids need edging?
Use edging strips where the drive meets a lawn or border, and ramp edging at the entrance or against a threshold. The perimeter takes load that the interlocked field does not, so restraining it keeps the whole installation tight.
How long does it take to install a gravel grid driveway?
A typical two-car driveway of around 40m² is a weekend job for two people, excluding excavation and muck-away. The grids themselves push-fit together and need no fixings, adhesive or specialist tools.
What maintenance does a gravel grid driveway need?
Very little. Check levels after the first winter and brush any settled cells back up. No annual raking and no yearly top-up, because the stone is confined and has nowhere to go.
